Penza Factory Electromechizmerenie (EMI)

Product: 4102.3847-02

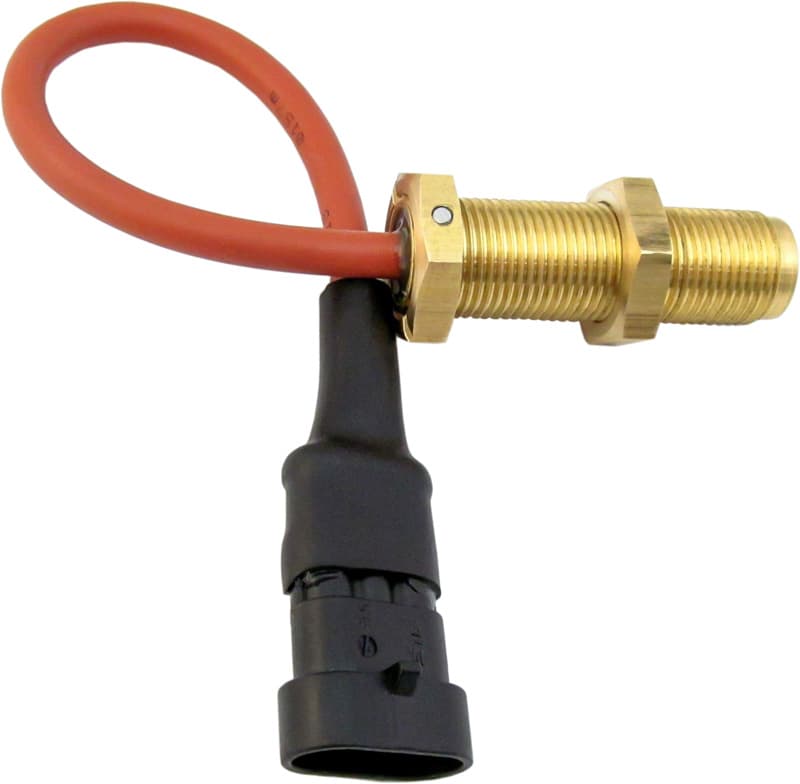

speed sensor (ДЧВ-02)

Specifications

used in
BELAZ-7555В, BELAZ-75473, etc.
analog
СТРМ.453624.005-01
mass
125 g
screw-thread
M18×1.5
body material
brass
wrench size
24
length (incl. wire and connector)
300 mm
supply voltage range
10-30 VDC
nominal supply voltage
24 VDC
maximum consumption current
9 mA
working gap range
1-3 mm
measured frequency range
0-15 kHz
minimum cog module
3
nominal load resistance
2 kOm
compatible connector
AMP 0-0282105-1
barcode
short link

The sensor is used to determine the rotational speed in the hydromechanical transmission on dump trucks by BELAZ. The principle of operation is based on the Hall effect. Output voltage, assuming the rated load resistance: is less or equal to 1 VDC for logical zero, is greater or equal to (Usupply−1) VDC for logical one.
