Product: 4102.3847-01

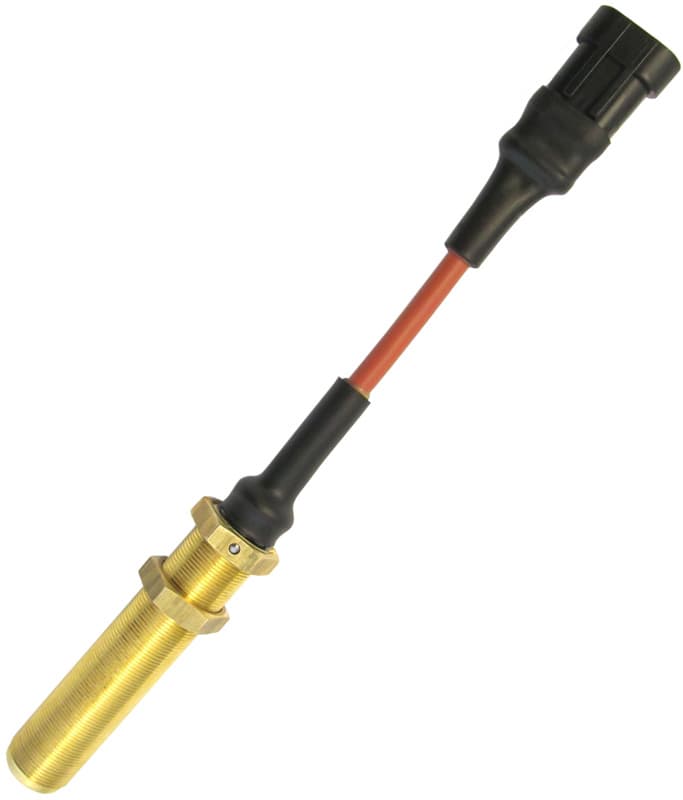

speed sensor (ДЧВ-01)
Specifications
- used in
- BELAZ-7555В, BELAZ-75473, etc.
- analog
- СТРМ.453624.005
- mass
- 135 g
- screw-thread
- M20×1
- body material
- brass
- wrench size
- 24
- length (incl. wire and connector)
- 250 mm
- supply voltage range
- 10-30 VDC
- nominal supply voltage
- 24 VDC
- maximum consumption current
- 9 mA
- working gap range
- 1-3 mm
- measured frequency range
- 0-15 kHz
- minimum cog module
- 3
- nominal load resistance
- 2 kOm
- compatible connector
- AMP 0-0282105-1
- barcode
- short link
The sensor is used to determine the rotational speed in the hydromechanical transmission on dump trucks by BELAZ. The principle of operation is based on the Hall effect. Output voltage, assuming the rated load resistance: is less or equal to 1 VDC for logical zero, is greater or equal to (Usupply−1) VDC for logical one.
