Penza Factory Electromechizmerenie (EMI)

Product: 6032.3829-03

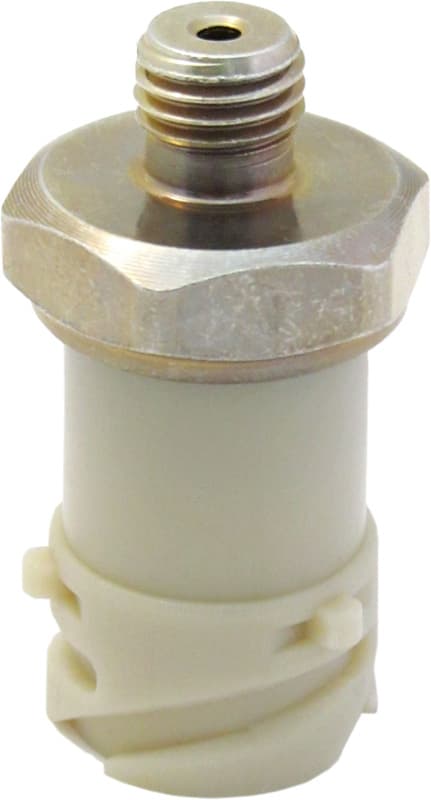

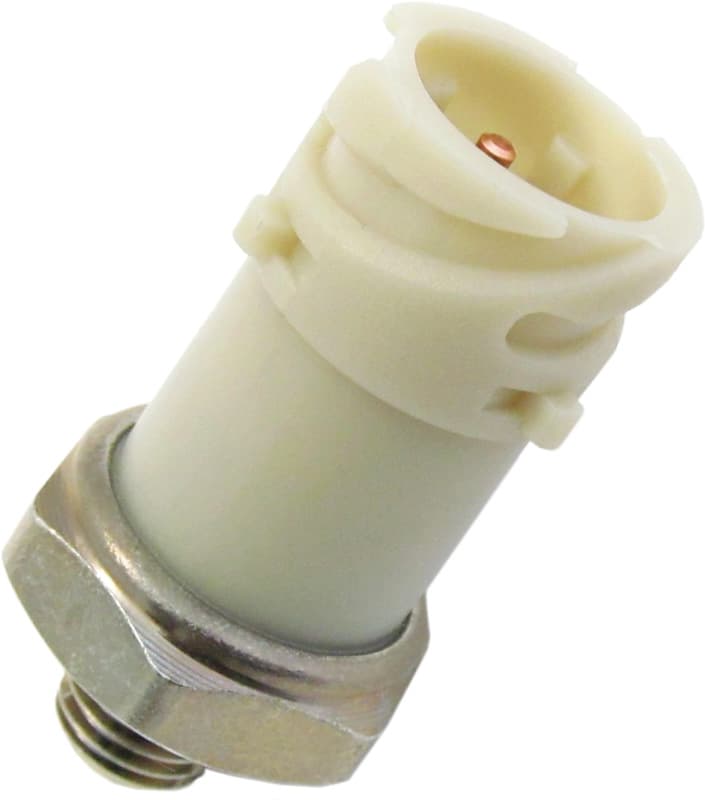

oil or air pressure alarm sensor with bayonet connector

Specifications

used in
universally applicable
contact
normally open (NO)
trigger pressure
from 0.3 to 5.0 kgf/cm² upon request
mass
47 g
maximum load pressure
10 kgf/cm²
screw-thread
M12×1.5 (configurable on demand)
spanner
27
compatible connector
DIN 72585-1
circuit type
circuit type: C
