Penza Factory Electromechizmerenie (EMI)

Product: 6042.3829-03

oil/air pressure alarm sensor

Specifications

used in
customer’s equipment
contact
normally closed (NC)
trigger pressure
from 0.3 to 3.0 kgf/cm² upon request
current
from 0.02 to 0.5 A
mass
27 g
screw-thread
K1/4" GOST 6111 (NPT 1/4)
K1/8" GOST 6111 (NPT 1/8)
M12×1.5
M14×1.5
M16×1.5
M18×1.5
spanner
22
nominal switching voltage
12 VDC, 24 VDC
circuit type
circuit type: B
barcode
short link

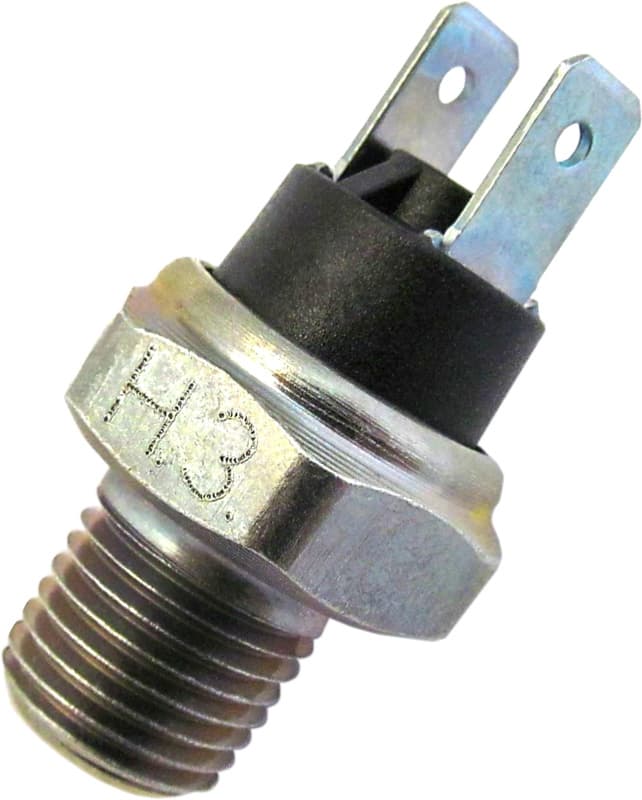

The label reading ‘Н.З.’ means ‘normally closed’ (нормально замкнут).
